WFLV
 |

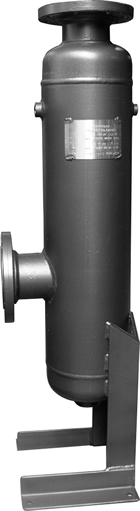

The WFLV Flash Steam
Recovery Vessels are installed in condensate return systems
in order to capture and utilize the flash steam coming off of the
hot condensate. This flash steam is typically piped away for use on
low pressure steam processes.
Notes:
1. 250 PSIG unit available; consult factory.
2. All
Watson McDaniel flash steam recovery vessels are supplied with ASME Section VIII Code Stamp. CATALOG SPEC
SHEET(S)
|
Model: WFLV
Body
Material: Carbon Steel
Max Capacity
(Condensate): 20,000 lbs/hr
Max Operating
Pressure: 150
PSIG
Sizes: 6", 8", 12",
16"
Connections: 150# RF FLG
|
