WDS
 |
The WDS Series
Air/Steam Moisture Separators are used for the removal of
entrained liquid or solids from steam. Effective in
applications were the system has an entrained liquid
flow rate of up to 40% by weight of the unit’s flow
capacity. CATALOG SPEC
SHEET(S) |
Model: WDS Series
Body
Material: Cast Iron
Max Capacity
(Steam): 15,977 lbs/hr
Max
Operating Pressure: 250
PSIG
Sizes: 3/4" -
4"
Connections: NPT, 125# FLG
|
WDS
 |
The WDS Series
Air/Steam Moisture Separators are used for the removal of
entrained liquid or solids from steam. Effective in
applications were the system has an entrained liquid
flow rate of up to 40% by weight of the unit’s flow
capacity.CATALOG SPEC
SHEET(S) |
Model: WDS Series
Body
Material: Carbon Steel
Max Capacity
(Steam): 143,331 lbs/hr
Max
Operating Pressure: 300 PSIG (NPT &
SW)
Sizes: 1" -
12"
Connections: NPT, SW, 150# FLG, 300#
FLG
|

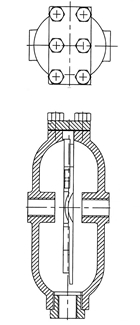

WCIS
 |
The WCIS Series Air/Steam Moisture Separators are used for the removal of entrained liquid or solids
from steam.
Typical Applications:
- On
steam mains, as a drip station ahead of steam pressure
reducing or temperature control valves
- On the steam inlet to
laundry presses and other process equipment which
require dry saturated steam
- On the compressed air supply to
sensitive instruments and before filtersCATALOG SPEC
SHEET(S) |
Model: WCIS
Series
Body Material: Cast
Iron
Max Capacity (Steam): 11,542 lbs/hr
Max Operating
Pressure: 200
PSIG
Sizes: 3/4" -
4"
Connections: NPT, 125#
FLG
|
