Products > Specialty Products > Safety Relief Valves

MODEL
TYPICAL APPLICATIONS
SPECIFICATIONS

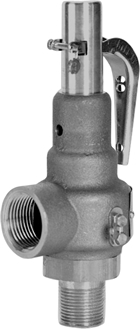

WSVB

Watson McDaniel WT1000 Steam Trap
The WSVB Safety Relief Valves are used for over-pressure protection on unfired pressure vessels in saturated steam systems.CATALOG SPEC SHEET(S)
Model: WSVB
Body Material: Bronze
Max Capacity (Steam): 18,601 lbs/hr
Max Operating Pressure (Steam): 250 PSIG
Sizes: 1/2" - 2-1/2"
Connections: NPT

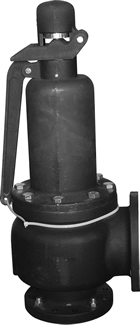

WSVI

The WSVI Safety Relief Valves are used for over-pressure protection on unfired pressure vessels in saturated steam systems.CATALOG SPEC SHEET(S)
Model: WSVI
Body Material: Cast Iron
Max Capacity (Steam): 219,886 lbs/hr
Max Operating Pressure: 250 PSIG
Sizes: 1-1/2" - 6"
Connections: NPT, FLG
